CK6140 Precision CNC Lathe Machine Automatic Metal Turning Machine

Name: CK6140 Precision CNC Lathe Machine Automatic Metal Turning Machine
Brand: Matsumoto
Price: 10800 USD

Quality CK6140 Precision CNC Lathe Machine Automatic Metal Turning Machine for sale

Place of Origin : China

Max. Swing Dia.over slide : 200mm

Payment Terms : T/T

X axis travel : 240mm

Certification : CE

Max. Swing over bed : 400mm

Chuck size : 200mm

Model Number : CK6140

Delivery Time : 20 working days

MOQ : 1

Brand Name : Matsumoto

Price : 10800-12500

Packaging Details : plywood case

Spindle nose : A2-6

Contact Now

CK6140 Precision CNC Lathe Machine Automatic Metal Turning Machine

Deascription:

CK6140 is a horizontal economical CNC lathe with stable integral cast bed structure, featuring high rigidity, low vibration and excellent long-term dimensional stability. Equipped with reliable CNC control system and precision spindle unit, it realizes automatic turning, feeding, cutting and tool changing. The machine boasts high machining accuracy, easy operation and wide adjustability, capable of machining outer circles, inner holes, threads, tapers and curved surfaces efficiently. Compact layout saves workshop space, suitable for continuous batch production and single piece customized processing.

PROJECT	UNIT	CK6140
Max. Swing over bed	mm	400
Max. Swing Dia.over slide	mm	200
Max. Processing length	mm	750/1000/1500
X axis travel	mm	240
Spindle speed series	/	2 gears/promise
Spindle speed range	r/min	50-2000
Spindle nose	/	A2-6
Diameter of spindle through hole	mm	52/82
Taper of spindle front hole	mm	MT5
Motor power of spindle	kw	5.5
Chuck size	mm	200
X/Z axis servo motor torque	N.M	X:4/Z:6
X/Z axis rapid fast moving	m/min	X:6/Z:8
Repeat positioning accuracy	mm	±0.005
Tailstock quill diameter	mm	60
Tailstock quill travel	mm	130
Tailstock quill taper	/	MT4
Tool post form	/	4 station electric tool post
Tool size	mm	20*20
Weight	kg	2100
Dimension	mm	250015001650

CK6140 Precision CNC Lathe Machine Automatic Metal Turning Machine

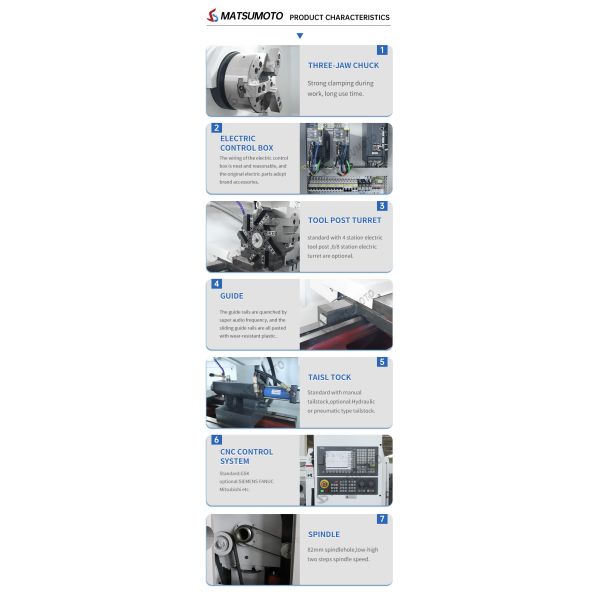

CK6140 Precision CNC Lathe Machine Automatic Metal Turning Machine Images
