Automatic CK6140 Flat Bed CNC Lathe Machine Stable Horizontal Lathe 1/2/3m

Product Categories
Shandong Matsumoto Machine Tool Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Automatic CK6140 Flat Bed CNC Lathe Machine Stable Horizontal Lathe 1/2/3m

Price : 8500-12500

Max. Processing length : 750/1000/1500mm

Packaging Details : plywood case

Brand Name : Matsumoto

Delivery Time : 15 working days

Spindle nose : A2-6

Model Number : CK6140

Certification : CE

Place of Origin : China

Payment Terms : T/T

Taper of spindle front hole : MT5

Spindle speed range : 50-2000 r/min

Max. Swing over bed : 400mm

Chuck size : 200mm

MOQ : 1

Contact Now

Automatic CK6140 Flat Bed CNC Lathe Machine Stable Horizontal Lathe 1/2/3m

The CK6140 flat‑bed CNC lathe is a popular horizontal turning machine for precision metal processing. Adopting high‑rigidity cast iron flat bed, it effectively absorbs cutting vibration and maintains stable accuracy under long‑time working conditions.

This CNC lathe performs turning, facing, boring, grooving and threading for steel, cast iron, aluminum and other metallic workpieces. With user‑friendly CNC control system, it supports automatic cycle processing, good repeat positioning accuracy for both small‑batch and mass production.Commonly used in general machinery, hardware fittings, auto spare parts and hydraulic component manufacturing. Optional hydraulic chuck, tool post, tailstock and chip conveyor are available to match different production needs.

Specifications
PROJECTUNITCK6140
Max. Swing over bedmm400
Max. Swing Dia.over slidemm200
Max. Processing lengthmm750/1000/1500
X axis travelmm240
Spindle speed series/2 gears/promise
Spindle speed ranger/min50-2000
Spindle nose/A2-6
Diameter of spindle through holemm52/82
Taper of spindle front holemmMT5
Motor power of spindlekw5.5
Chuck sizemm200
X/Z axis servo motor torqueN.MX:4/Z:6
X/Z axis rapid fast movingm/minX:6/Z:8
Repeat positioning accuracymm±0.005
Tailstock quill diametermm60
Tailstock quill travelmm130
Tailstock quill taper/MT4
Tool post form/4 station electric tool post
Tool sizemm20*20
Weightkg2100
Dimensionmm2500*1500*1650
Accessories
Standard AccessoriesOptional Accessories
  • Frequency Spindle;
  • 200mm 3-jaw Manual Chuck;
  • 4 station turret;
  • Manual Tailstock;
  • Full-splash Guard
  • Stepless speed change
  • Hydraulic Chuck;
  • Hydraulic tailstock;
  • step speed change by manual;
  • Auto 3-step speed change;
  • 6/8/12-station turret;
  • Center Rest and follow rest;
  • 4-Jaw chuck.
  • Living tools
Details Images

Automatic CK6140 Flat Bed CNC Lathe Machine Stable Horizontal Lathe 1/2/3m

BED CASTING

The key to castings is timeliness, putting quality first to ensure customer satisfaction.

Automatic CK6140 Flat Bed CNC Lathe Machine Stable Horizontal Lathe 1/2/3m

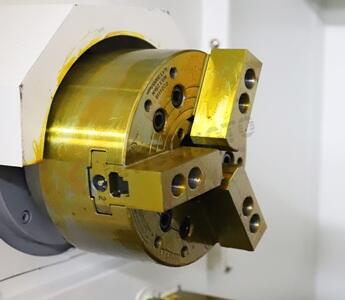

THREE-JAW CHUCK

Strong clamping during work, long use time.

Automatic CK6140 Flat Bed CNC Lathe Machine Stable Horizontal Lathe 1/2/3m

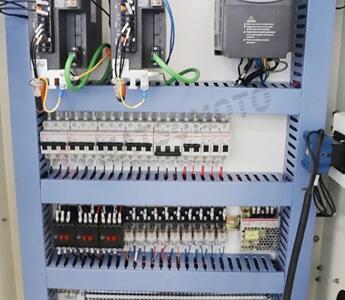

ELECTRIC CONTROL BOX

The wiring of the electric control box is neat and reasonable, and the original electric parts adopt brand accessories.

Automatic CK6140 Flat Bed CNC Lathe Machine Stable Horizontal Lathe 1/2/3m

TOOL HOLDER

Four-station tool holder, multi-tool quick change.

Automatic CK6140 Flat Bed CNC Lathe Machine Stable Horizontal Lathe 1/2/3m

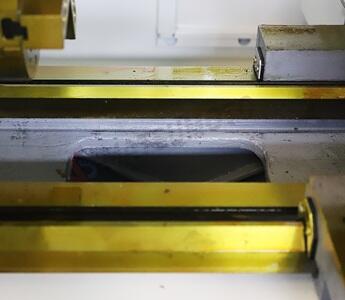

GUIDE

The guide rails are quenched by super audio frequency, and the sliding guide rails are all pasted with rear-resistant plastic.

Automatic CK6140 Flat Bed CNC Lathe Machine Stable Horizontal Lathe 1/2/3m

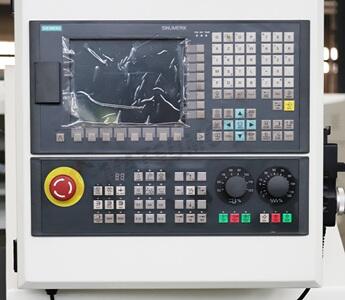

CNC SYSTEM

Standard:GSK
Optional: FANUC/MITSUBISHI etc.

Automatic CK6140 Flat Bed CNC Lathe Machine Stable Horizontal Lathe 1/2/3m

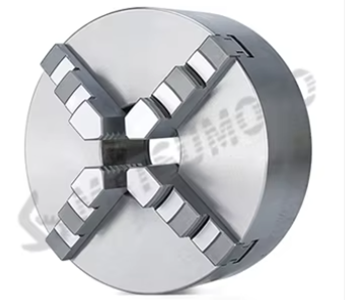

OPTIONAL ACCESSORIES

Precision four-jaw chuck.
